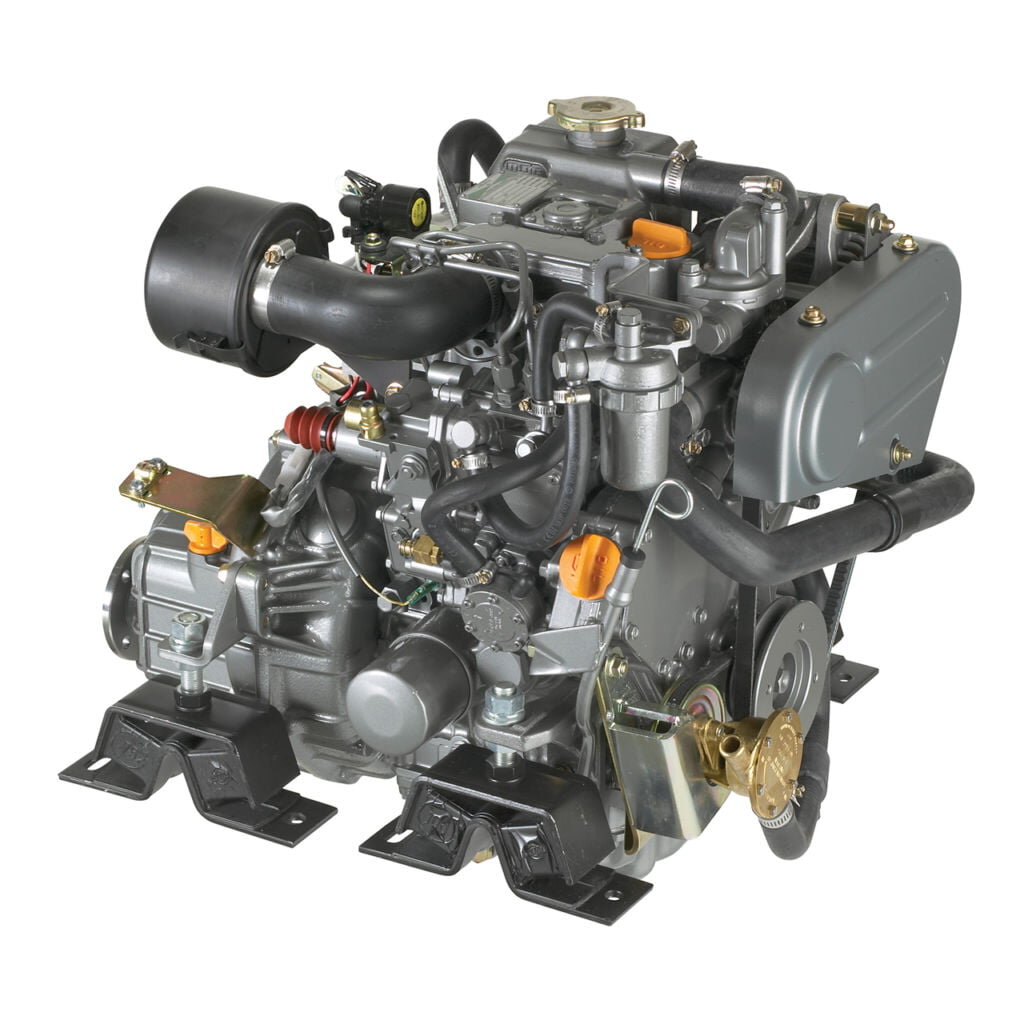

2YM15 Overview
Specifications
| Rated Output | 10 kW / 14mhp |
| Rated Speed | 3600 rpm |
| Displacement | 0.57 L / 34.7 cu. in |
| No. of Cylinders | 2 Cylinders |
| Cylinder Bore x Stroke | 70 mm x 74 mm / 2.75 in x 2.91 in |
| Combustion System | DIndirect Injection, In-line Pump |
| Aspiration | Natural |
| Alternator | 12V - 125A |
| Dry Weight Without Gear | 103 kg / 227 Ibs |
| Dimensions | 613 mm x 463 mm x 600 mm |
| Controls | Mechanical |
| Certifications | RCD 2 | EPA Tier 3 | BSO II | EMC | EPA Tier 3C |
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: at 15°C =0.842 g/cm³
Technical data according to (ISO 8665) / (ISO3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KM35A marine gear
(Dimensions may vary with other gears/ elbow)
